Sensational press photo from behind the testing unit, showing the variable prism lens unit in action. Also visible are the computer screen and the head immobilization frame. Beyond is the 9 point LED target grid with a single LED illuminated.
|
|
|
|
Sensational press photo from behind the testing unit, showing the variable prism lens unit in action. Also visible are the computer screen and the head immobilization frame. Beyond is the 9 point LED target grid with a single LED illuminated.
|
|
|
|
|

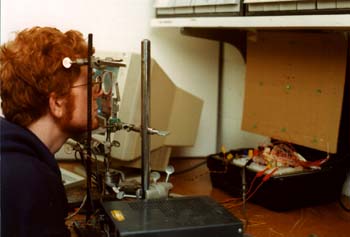

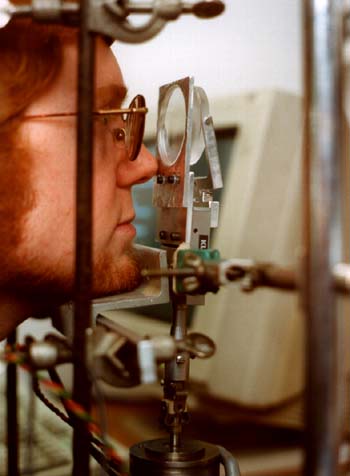

Profile view, showing the subject engaged in a test. Details of the prism unit are visible here, including opposing planoconvex/planoconcave lenses, custom lens mount, forked yoke, translation stage, and the top of the stepper motor.
|

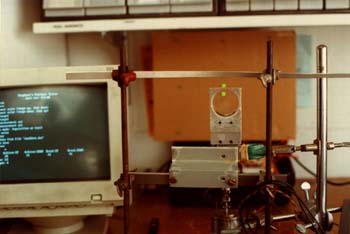

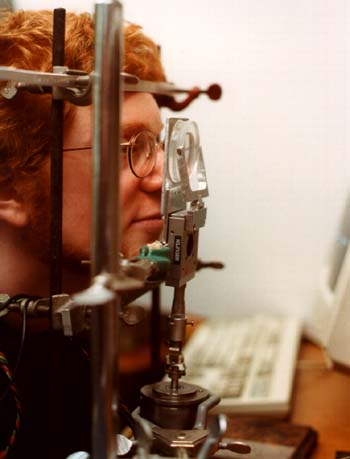

A somewhat bemused subject gazes at the target, conscious of being watched. From this side of the lens unit, more of the pivoting yoke is visible, as well as the flexible coupler between stage and motor. PC whirs idly in the background.
|
|
|
|

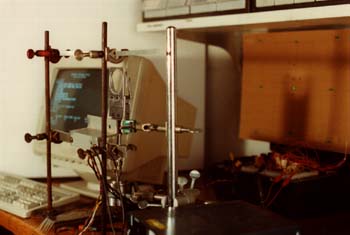

Three quarters from behind shot showing a wider swath of the setup. In the foreground is the 30V power supply for the stepper motor driver (not shown), and to the right is the hardware interface for the target.
|

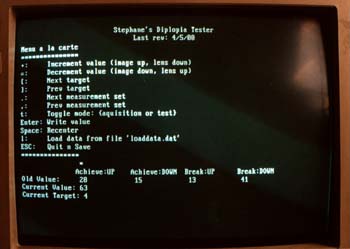

A standard screen shot of the control program. Data values for the current target point are visible at bottom of the screen.
|
|
|
Overall setup without subject.
|
